Τεχνικά χαρακτηριστικά

• Εικόνα (Pixels): 1024 pixels (H)x1280 pixels (V)

• 1D: Codabar, Code 39, Code 32 Pharmaceutical (PARAF),Interleaved 2 of 5,NEC 2 of 5, Code 93, Straight 2 of 5 Industial, Straight 2 of 5 IATA,Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8,EAN/AN-13,MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited,GS1 DataBar Expanded, China Post (Hong Kong 2 of 5), Korea Post.
  2D: Codeblock A, Codeblock F, PDF417, Micro PDF417, GS1 Composite Codes,QR Code, Data Matrix, MaxiCode, Aztec, HANXIN.

• Εύρος σάρωσης: Code39(4mil): 0mm-70mm, Code39(5mil): 0mm-100mm,Code39(13mil): 0mm-240mm

• Ανταπόκριση κίνησης: 4m/s

• Λειτουργία σάρωσης: Continuous Scanning

• Field of view: 44°(H),34°(V)

• Contrast: 20%

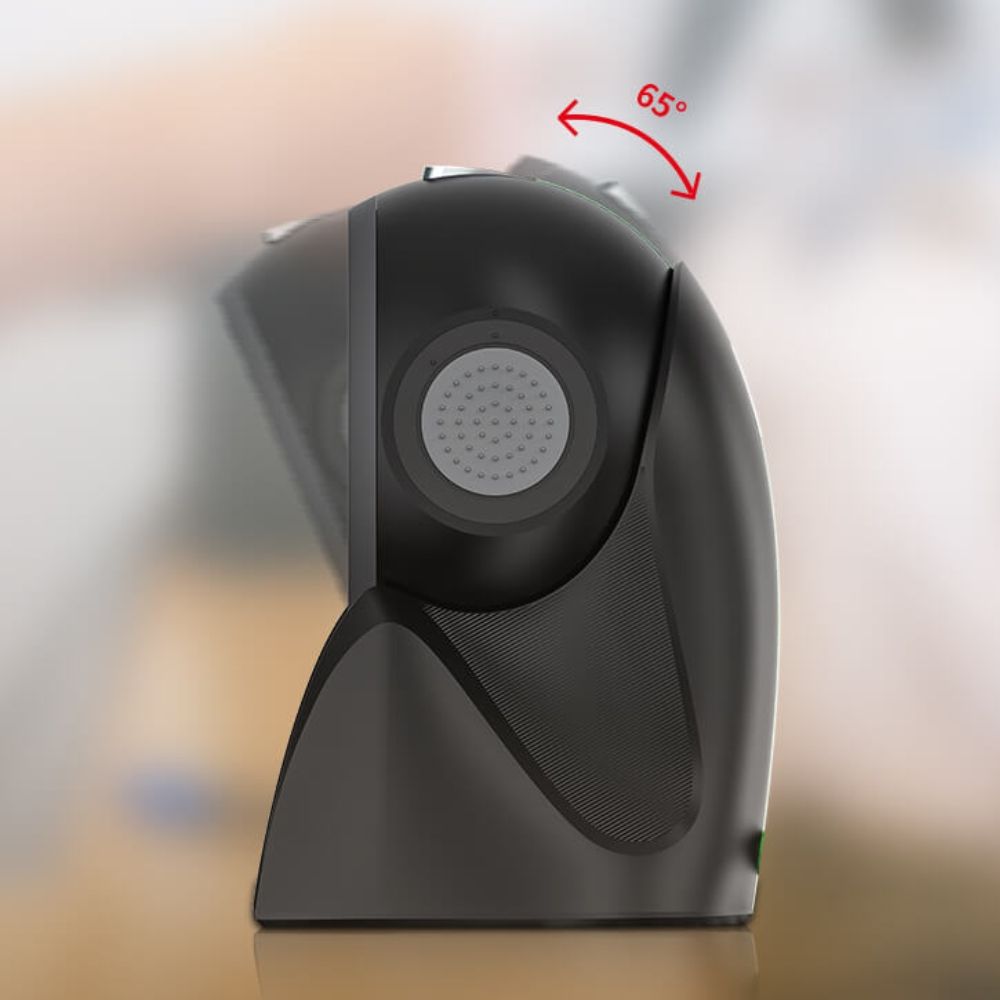

• Scan Angle: Turn±360°,Elevation±65°,Declination ±65°

• Human-computer interaction: Indicator light: code reading prompt;

• Button: manual trigger

• Interface: USB(Drive-Free),RS232, USB-COM

• Environmental Parameters

• Operating Temperature: -20℃~60℃

• Storage Temperature: -30℃~70℃

• Relative Humidity: 5%~95% RH(non-condensing/non-freezing)

• Ambient light intensity: 0~100,000 Lux

• Shock Resistance: Withstands multiple times 1.5 meters drops to concrete

• Physical Parameters

• Dimensions: 106mm*108mm*160mm

• Material: ABS+PC

• Cable Length: 1.8M

• Electronic Parameters

• Voltage: DC5V±5%

• Current: Standby Current 150mA; Working Current 240mA
